Automatic hydraulic pressure block machine

a. The flow of complete line:

PLDE-1200 electronic material feeder---- JS-500 double shaft blender---- Material tank----ST-500 belt conveyor----Plate conveyor----Block machine--- Plate discharger---- Stacking machine

b. Major technological data

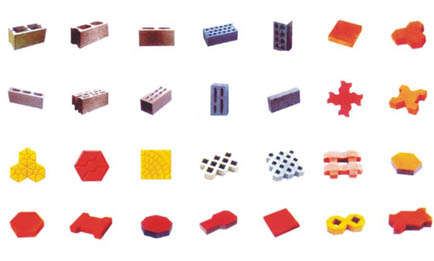

Producing capacity 15seconds/mould specifications
Vibration frequency 3920times/min 390*190*190 air block,6/mould,
240*115*90 small air block,21/ mould
240*115*53 standard brick,39/mould
250*250*60 road brick,6/mould
225*111*60 road brick 21/mould
200*100*60 road brick,24.mould
Pressure of oil pump 30Mpa/cm
Maximum pressure 230KN
Electric motor Y180L-4-22kw
Gross weight 11.5t
Overall dimensions 1090*2100*2770mm
