250 Ton Complete set for Wheat Milling

Bookmark and Share

1.Description:

 The technical design of 250 ton Complete set for Wheat Milling bases on mature and advanced flour-milling and guides by the directive advice from expert and professor. Our key technology takes  the lead position in the international market.

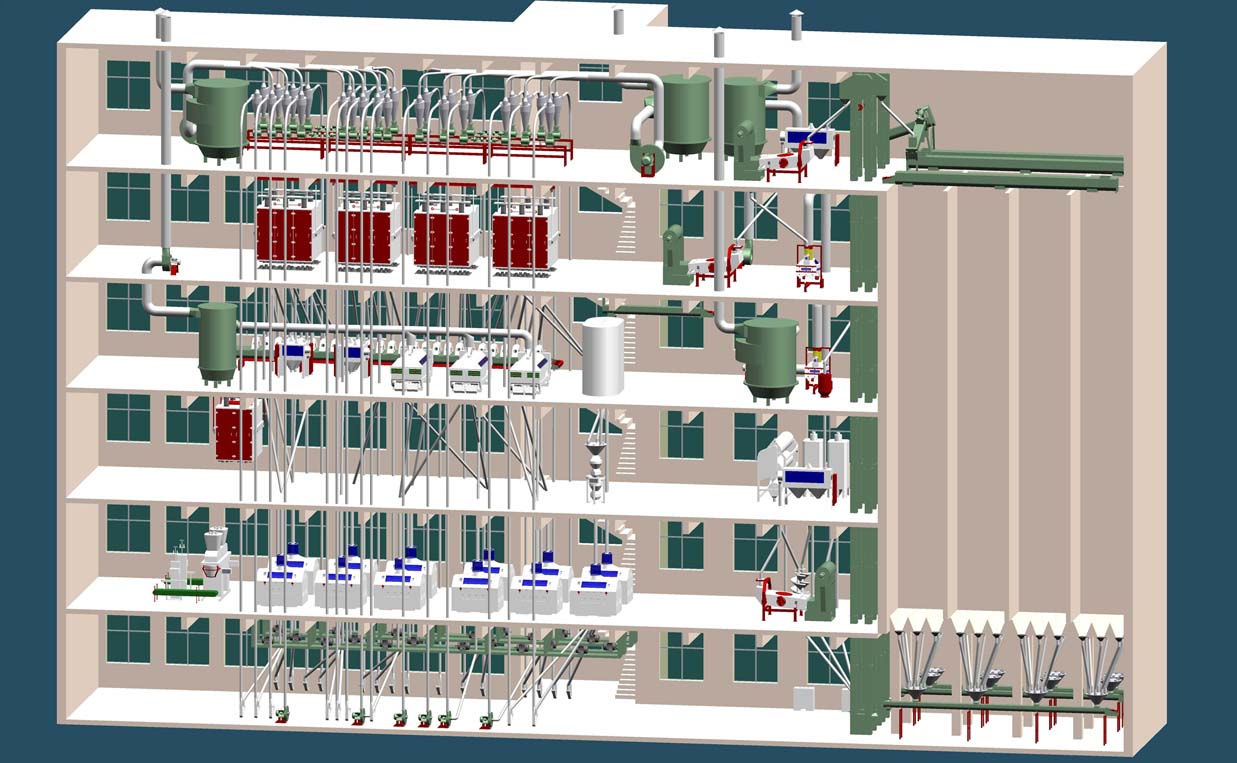

The CAD drafts of 250 ton complete set for Wheat Milling


The technical design of 250 ton Complete set for Wheat Milling bases on mature and advanced flour-milling and guides by the directive advice from expert and professor. Our key technology takes  the lead position in the international market.

2. The Main Technical Parameters of Grinding Mill:


Output
process 250T wheat per day
Extraction flour
the volume weight is over 770g/L
The quality of the flour
GB1355-86 wheat flour
Total power
about 750KW, 70KW.H, the voltage: 380V,50HZ
Total area of workshop
about 2800 ㎡ (41×8.5×6 six storeys)
Adopts
14sets of 100 style double mills
the total length of the rollers :100×2×14=2880cm



3.Features:
The equipments of 250 ton Complete set are perfect.
①The main equipments of milling flour is FMFQ10X2 style Pneumatic Mill, which adopts the national advanced technology. Its  features are sealed installation, lower noises and less power consumption.
②The equipment of sifting flour is FSFG6X28 style Plansifter.
③The equipment of purifying flour is the advanced patent product, which is specialized in blowing well, simple adjusting, sufficient separating, the rate of ash content is reduced 60%-70%, etc.
④Centrifugal impactor, Bran brush, Bran centrifugal, Micro-adding machine, Autamatic balance, packer and other equipments are international advanced products. The equipments of cleaning wheat include Vibrograin, Grain separator, Horizontal scourer, Intensive damper, stoner and other equipments.

4.Main Equipments list of 6FTF-250 flour mill plant
No
Name of machine
Qty
Capacity
Remark

01
TCQY-125pre–cleaning cylindrical screen
1
100-120T/H
Pre-cleaning

02
Roller Body 250*1000mm
Pneumatic model, lock-self type.
14
Dia*Length
250MM*1000MM
Original SKF bearing.
Option: frequency conversion mill; frequency conversion mill use 304# stainless passed GMP standard



03

Plan sifter FSFG6X28
162 wooden frames 256 RPM cap.
6
Sieve area:56.3 Sq.M/pc
Total area:337.8 Sq.M
 Option: sieve box by imported complex board; plastic box passed GMP standard
04
Purifier FQFD-49X2X3
2 section treble deck
4
400KG-2800KG/H

05
Hi pressure fan, TY-8-1.8 model
2
P: 11130-11310MM
Vol:16007-10034M3/H

06
4-72-6# low pressure fan
2
Pressure:215-410mm
Vol:22180-9828Sq.m

07
4-72-4.5# low pressure fan
1
Pre:2350-1667mm
Vol:5730-10580 Sq.m


08
4-72-4# low pressure fan
2
Pre:1999-1313mm
Vol: 4020-7420 Sq.m


09
Air lock, 9L
42
9 Litre


10
Reduction system for air lock
12

Motor reducer type.

11
Bran finisher (double body)
FFPD45X1000X2 model
1
3.2T/H


12
Bran separator (double body)
FFPS45X2 model
1
3.2T/H


13
Grain Separator (double body)
Double deck, TQLM150 model
2
12-15T/H


14
De-stoner TQSF125, (Double body)
2
12-15T/H


15
Vibrator TQLZ150 (Double body)
1
18T/H


16
Grain scourer
FDMW50X150 model
2
12-16T/H



Click here to get complete list
