Flat Die Pellet Mill

Bookmark and Share

Pellet Press/Granulator/Pelletiser---Flat Die

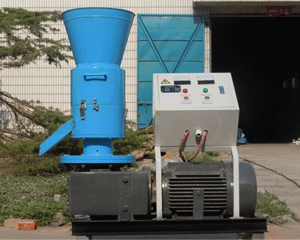

Our Flat Die Pellet Mill is one kind of small pelleting machine to make wood pellet which is suitable to the family need.

Due to the great variety of input products and the different plant sizes available, we introduce the small flat pellet press according to the requirement of the customer considering the capacity and the local conditions. There is, for example, the small flat pellet press for only 50-200 kg/h for the cabinetmaker's workshop pelleting its own dry wood waste. Such this small flat pellet press only works several hours a day and still is economically efficient.

pellet millpellet mill

With closed house to cover motor, CE electrical parts & insolated protective plate for the electrical panel.
It can make all kinds of solid grain or agro material to be small pellets and feeding animals like fish, shrimps, chicken, rabbit, sheep, pig, horse and cattles.
It can make all kinds of saw dust. Paddy straw, sunflower stalk, forestry wastes, Wood chips, chemical and many other wastes or solid powder material.

Model Capacity Power Net Weight Outside dimension
ZLSP-200 D-Type 80-120kg/h 7.5kw 250kg 100*43*95cm
ZLSP-260 D-Type 150-200kg/h 15kw 330kg 120*50*107cm
ZLSP-300 D-Type 200-250kg/h 22kw 410kg 127*52*107cm
ZLSP-400 D-Type 300-350kg/h 30kw 550kg 147*60*115cm
